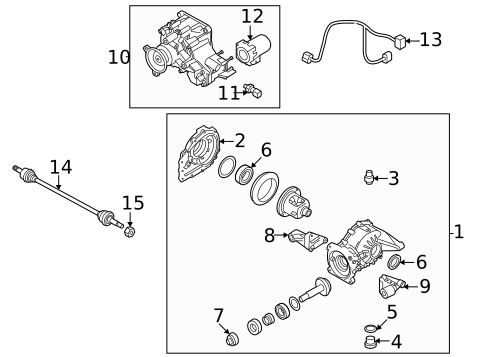

Axle & Differential for 2023 Hyundai Santa Fe
No.
Part # / Description / Price
Price
1
Differential Assembly
Hyundai
Hyundai Notes: PARTS: Part has related component that cannot be reused/reinstalled; lock nut.
Description: Santa Fe. Santa Cruz. With hybrid. Awd, 2021-23.
MSRP $1,895.73
$1,281.13
MSRP $1,895.73
$1,281.13
2
Cover Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Santa Fe. Santa Cruz. With hybrid. Awd, 2021-23.
MSRP $210.65
$143.66
MSRP $210.65
$143.66
3
Differential Vent Hose Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Santa Cruz. Santa Fe. Kona. Awd, 2019-20. 2.5L awd. Awd without hybrid 2021-23. 1.6L awd.
MSRP $14.97
$11.60
MSRP $14.97
$11.60
4
2009-2021 Hyundai Drain Plug Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: 4wd. Without limited slip. Awd, 2019-20. 2.5L awd. Awd without hybrid 2021-23. 1.6L awd.
MSRP $12.95
$10.04
MSRP $12.95
$10.04
5
Drain Plug Packing Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: 1.6L. 2.5L. With hybrid. Awd, 2021-23.
MSRP $4.47
$3.46
MSRP $4.47
$3.46
6
Drive Axle Shaft Seal Hyundai
Hyundai Positions: Right
Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Santa Fe. Tucson. 1.6L. Santa Cruz. 2.5L. With hybrid. Awd, 2021-23. Kona.
MSRP $24.40
$18.91
MSRP $24.40
$18.91
7
Nut Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Santa Fe. 2.5L awd. Awd without hybrid 2021-23. 1.6L awd.
MSRP $68.90
$53.40
MSRP $68.90
$53.40
8
Mount Bracket Hyundai
Hyundai Positions: Right
Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Santa Cruz. Right. Santa Fe. With hybrid. 2.5L awd. 1.6L awd.
MSRP $182.90
$124.74
MSRP $182.90
$124.74
9
Mount Bracket Hyundai
Hyundai Positions: Left
Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Santa Cruz. Left. Santa Fe. 2.5L awd. Awd without hybrid 2021-23. 1.6L awd.
MSRP $182.90
$124.74
MSRP $182.90
$124.74
10
Viscous Coupler Hyundai
Hyundai Description: Tucson. Santa Fe. 1.6L. Santa Cruz. Sonata. Awd without hybrid 2021-23. Awd. to 09/14/2023.
MSRP $955.90
$646.00
MSRP $955.90
$646.00
11
Pressure Sensor Hyundai
Hyundai Notes: PARTS: Part included with coupling.
Description: With limited slip. 1.6L. 2.5L awd. Awd without hybrid 2021-23.
MSRP $126.55
$86.31
MSRP $126.55
$86.31
12
Differential Lock Motor Hyundai
Hyundai Notes: PARTS: Part included with coupling.
Description: GV70. Sonata. 2.5L awd. Awd without hybrid 2021-23. 1.6L awd.
MSRP $191.32
$130.48
MSRP $191.32
$130.48
13
MSRP $45.69
$35.41
14
Axle Shaft Assembly Hyundai
Hyundai Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; axle nut.
Description: With hybrid.
MSRP $913.58
$617.40
MSRP $913.58
$617.40
14
Axle Shaft Assembly Hyundai
Hyundai Positions: Left
Notes: PARTS: Part has related component that cannot be reused/reinstalled; axle nut.
Description: With hybrid.
MSRP $913.58
$617.40
MSRP $913.58
$617.40
15
Axle Nut Hyundai
Hyundai Positions: Right
Notes: PARTS: Part cannot be reused/reinstalled.
MSRP $13.23
$10.25
MSRP $13.23
$10.25
